Mobile Intelligent Collaborati

DELAMPS Laser Welding Mobile Intelligent Collaborati

The mobile welding solution can also be matched with laser welding equipment. It integrates the flexible operation capability of collaborative robots, the high efficiency and high precision advantages of laser welding, and the flexible transportation features of mobile trolleys, adapting to diversified production needs.

Overall Weight：约280kg

Welding Range：(R300-R2000mm) x 180°

Internal space dimensions：700×540×750mm

Online Consultation
Contact Us
Features

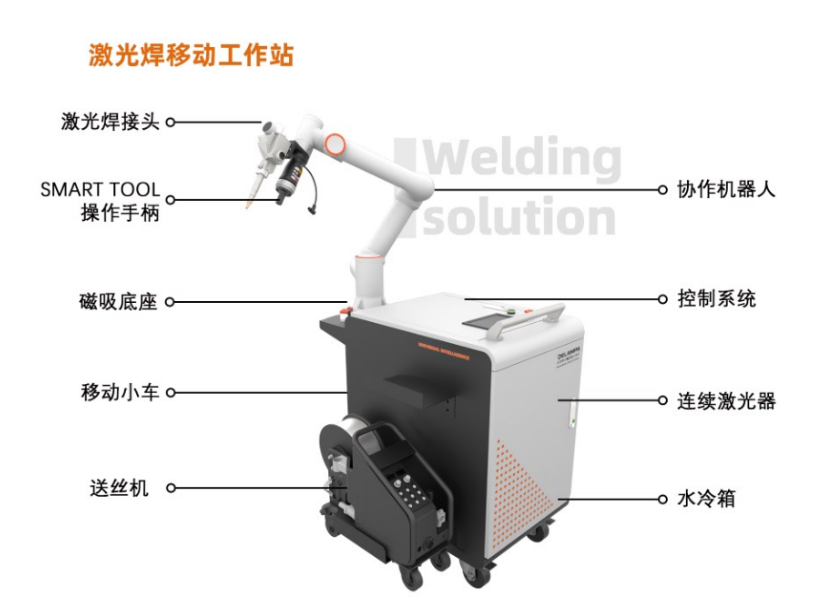

Product Composition

Product Advantages
  • 01 Modularization
    Plug and play, easy maintenance
  • 02 Deploy quickly
    Movable, strong magnetic adsorption, flexible deployment
  • 03 Easy to operate
    Drag and drop operation, easy for beginners to get started quickly
  • 04 High efficiency
    One person operating multiple devices for efficient collaborative work
Equipment Operation Procedure
  • STEP 01

    Push the mobile intelligent trolley to the position of the target workpiece and fix the universal wheels.

  • STEP 02

    Select the welding process and adjust the parameters

  • STEP 03

    Manual drag teaching to build a complete welding task

  • STEP 04

    Robots automatically complete welding operations

Detailed Product Parameters
Product ModelDSW-3DSW-5DSW-5LDSW-10DSW-20
Collaborative RobotFR3FR5FR5WMLFR10FR20
- Body Weight≈15kg≈22kg≈45kg≈40kg≈85kg
- Payload3kg5kg5kg10kg20kg
- Wingspan Range622mm922mm1900mm1400mm1854mm
- Repeat Positioning Accuracy±0.02mm±0.02mm±0.1mm±0.05mm±0.1mm
Intelligent LaserStandard equipped with 2000W continuous laser, water tank, wire feeder and working cables
Intelligent Operating System10-inch PAD with Intelligent Welding Operating System
Smart ToolStandard configurationStandard configurationStandard configurationStandard configurationStandard configuration
Six-dimensional Force ControllerStandard configurationStandard configurationStandard configurationStandard configurationStandard configuration
Strong Magnetic BaseStandard configurationStandard configurationStandard configurationStandard configurationNone
